Alarm.com Car Connector ODBII GPS Vehicle Tracker, AT&T
Use the Connected Car solution from Alarm.com to extend protection and awareness outside of the house or place of business. From the Customer app, you can locate your car, see the engine's state, and calculate its fuel economy.

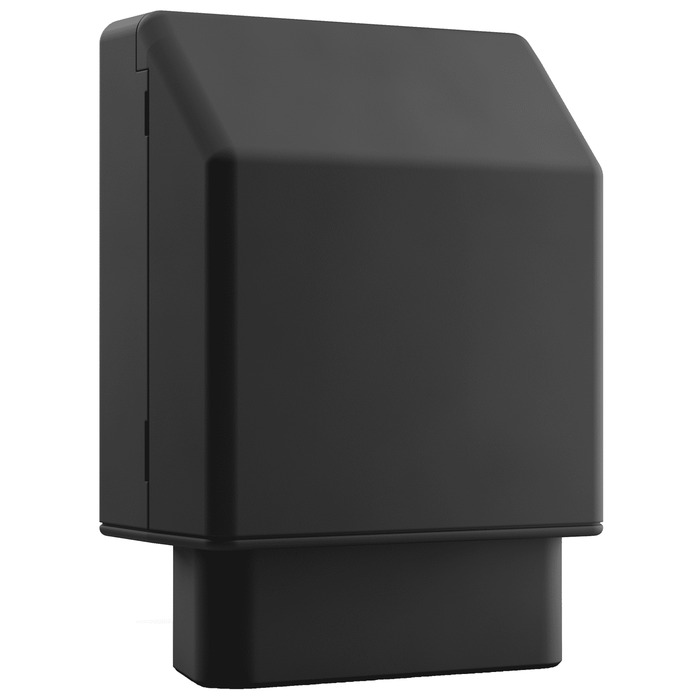

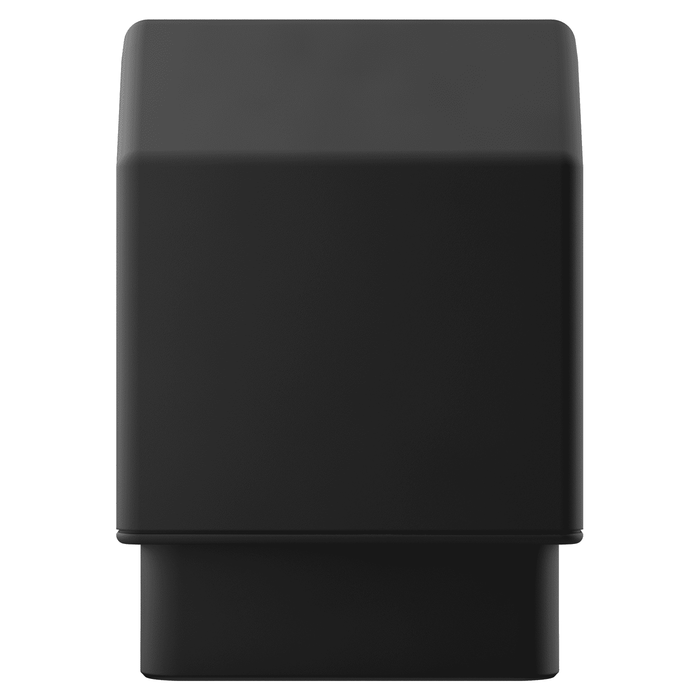

Real-time driving safety warnings, diagnostic alerts, and more can give you peace of mind. The Car Connector quickly and simply connects a car to the Alarm.com platform by easily plugging it into its OBD-II port.
This device requires an Alarm.com account with Car Connector feature activated. Your Alarm.com partner will need to work with you to add Alarm.com devices to your account.
Alarms247 offers DIY monitoring packages to support these devices.
Tip: Add the Car Connector as a Geo-Device to trigger lights and thermostats when they’re close to home.
|Cellular network||AT&T 4G LTE|
|OBD-II interface||J1850 PWM, J1850 VPW, ISO-9141-2, ISO-14230 (KWP 2000), SW-CAN, ISO-15765 CAN|
|Status LEDs||3 (OBD, GPS, cellular)|
|Certifications||FCC, IC, CE, PTCRB, RoHS|
|Operating voltage||12/24 VDC vehicle systems
9-30 VDC (start-up, operating)
7-32 VDC (momentary)
|Power consumption||Typical 2 mA @ 12 V (deep sleep)
Typical 40 mA @ 12 V (active tracking w/ GPS and cell enabled)
|Battery pack||180 mAh, Lithium Ion|
|Battery charging temperature||32°F to 113°F (0°C to 45°C)|
|Operating temperature||-22°F to 140°F (-30°C to 60°C) (connected to primary power)
-4°F to 140°F (-20°C to 60°C) (operating on battery)
-4°F to 77°F (-20°C to 25°C) ≤ 6 months (long-term storage with battery)
|Operating humidity||95% relative humidity @ 122°F (50°C) non-condensing|
|Shock and vibration||U.S. Military Standards 202G, 810F; SAE J1455|
|Dimensions||1.8 x 2.6 x 1.1” (46 x 67 x 28 mm)|
|Weight||1.75 oz (50 g)|
