Qolsys IQ S-Line 16 Zone Hardwire to Wireless Converter, Small Enclosure

by Qolsys
SKU QS7133-840
Original price $159.00 - Original price $159.00
Original price
$159.00 - $159.00
Current price $159.00

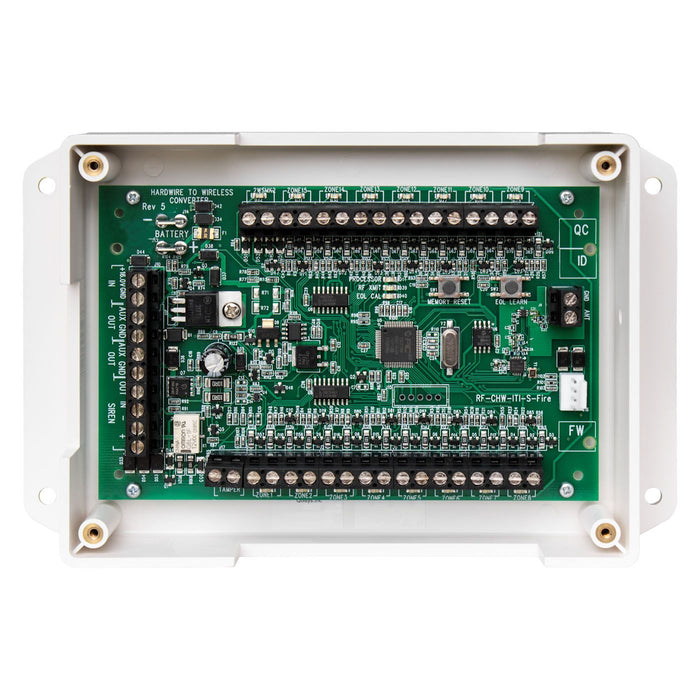

The Qolsys QS7133-840 (IQ Hardwire 16-F) is a compact enclosure S-Line translator that allows you to encrypt and wirelessly link up to 16 hardwired zones to the IQ Panel 2 and IQ Panel 2 Plus security systems.

The QS7133-840 is a low-cost approach to connecting hardwired security and smoke detector zones to IQ Panel 2. It has backup battery charging, 500mA of 12-volt auxiliary power, an onboard siren relay, built-in status LEDs for each zone, and it can accommodate up to ten two-wire smoke detectors. Normally open and normally closed contacts, as well as powered zones such as motion sensors and glass break detectors, are supported.


Product Features:

  • Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
  • Supports up to ten two-wire smoke detectors - 1 two-wire smoke loop, 10 detectors maximum, only supports System Sensor® smokes *2W-B, 2WT-B, 2WTA-B (*Detector models should not be mixed.)
  • LED lighted zones for ease of "learn-in" installation/troubleshooting
  • EOL supervision using 4.7K Ohm resistors (included)
  • Up to 500 Milliamps of power for hardwired motion detectors, glass break detectors, and/or sirens
  • Charging circuit for backup battery, fully supervised with power outage recovery

Product Specifications:

  • Dimensions: 5.5 x 3.5 inches
  • Backup batteries: 12VDC, 5AH Max (optional)
  • Input voltage: 16VDC Plug-In Transformer
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Humidity: 95&per; RH Max
  • EOL Supervision: 4.7K Ohm
  • Input Zones: 15 N/O or N/C
  • Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor® 2W-B, 2WT-B*
  • Auxiliary Voltage Output: 12VDC @ 500mA Max
  • Tamper Zone: Used for case tamper, no resistor
  • Relay Contact: 60VDC/1A Max drives siren or other devices.
