DSC PowerG Wireless Smoke and Heat Detector

DSC PowerG Wireless Smoke and Heat Detector

by DSC
SKU PG9936
$142.99 - $142.99
$142.99
$142.99 - $142.99
$142.99

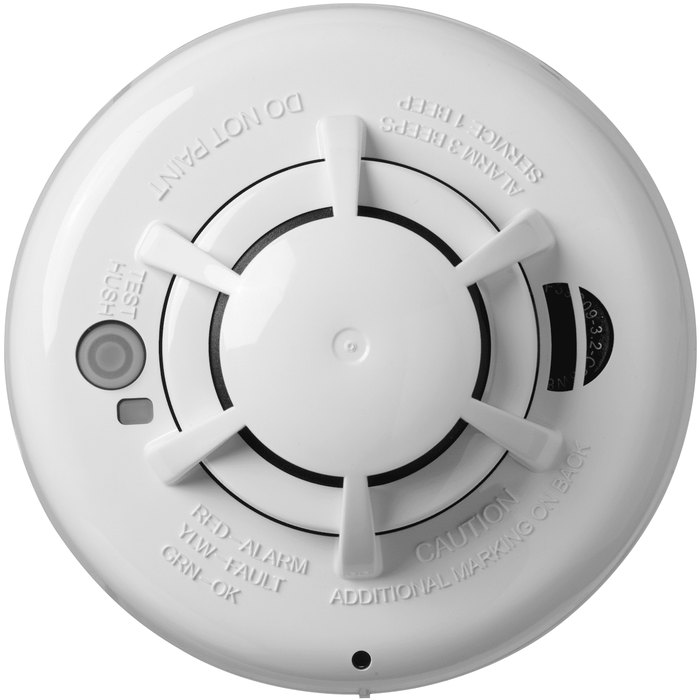

The DSC PG9936 is a wireless PowerG photoelectric smoke and heat detector with fixed and rate of rise temperature detection.  It has a built-in 85 dB piezoelectric sounder.

Product Features:

  • Photoelectric smoke detector
  • Provides accurate early fire warning, with audio and visual alerts, when smoke or high temperature is detected
  • Enhances safety and facilitates maintenance, with alerts for device tampering and low battery
  • Ensures performance using built-in PowerG leading-edge wireless intrusion technology with two-way communication
  • Offers long-lasting value with a 3-year battery life (with typical use)
  • Large transmission range enables repeater-free installations
  • Speeds up installations with visible link quality indicator on the device
  • Simple wall or ceiling installation, with bracket
  • Protected by a back tamper.

Product Specifications:

  • Dimensions: 5" x 2.5" in (125mm x 63mm)
  • Weight (including battery): 243g (8.75 oz)
  • Color: White
  • Communication Protocol: PowerG
  • Spacing Rating: 70 ft (21.3 m)
  • Alarm Sensitivity (threshold) PG9936 (cULus): 1.26 to 2.39%/foot obscuration
  • Alarm Sensitivity (threshold) PG4936/PG8936: complies with EN14604
  • Audible Signal (ANSI Temporal 3): 85 dBA minimum in alarm
  • Operating Temperature (PG9936): 40°F to 100°F (4.4°C to 37.8°C)
  • Operating Temperature with Heat Detector: 32°F to 100°F (0°C to 37.8°C)
  • Operating Temperature with Smoke Alarm (PG4936): 41°F to 113°F (5°C to 45°C); Type A Photoelectric Smoke Alarm (Australia)
  • Operating Environment: Indoors
  • Heat Alarm: 135°F (57°C)
  • Humidity: 15 to 90% RH non-condensing
  • Approved Batteries: 3 AAA Energizer E92 or Duracell Procell PC2400
  • Alarm Silencing: PG4936 8 minutes automatically resettable
  • Supervisory Transmission Frequency: PG9936 64-minute intervals
  • Supervisory Transmission Frequency: PG4936/PG8936 12-minute intervals
  • Maximum Tx Power: 433.22 MHz - 434.64 MHz: 10 mW, 868.0 MHz - 868.6 MHz: 14 mW, 868.7 MHz - 869.2 MHz: 14 mW.
  • Low Battery Detection: Low battery 14 days remaining
  • Compatible Receivers: HSM2HOST9, HS2LCDRF(P)9, HS2ICNRF(P)9, PG9920, WS900-19, WS900-29 (912 MHz to 919 MHz)
  • Approvals: FCC/IC, UL/ULC, CNC, CSFM, CE

LED Indicators:

Visual Status Indications:

  • Normal: LEDs - Green flash every 60 seconds; Sounder - Off
  • Heat Alarm: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
  • Heat Test: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
  • Smoke Alarm: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3 (press button to hush for 5-10 minutes)
  • Smoke Test (with canned smoke): LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3 (press button to hush for 5-10 minutes)
  • Test Alarm (button press): LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
  • Detector Trouble: LEDs - Yellow flash every 4 seconds; Sounder - One chirp every 48 seconds
  • Low Battery: LEDs - Yellow flash every 12 seconds; Sounder - One chirp every 48 seconds (press button to hush for 12 hours)
  • Detector Dirty: LEDs - Yellow flash every 8 seconds; Sounder - One chirp every 48 seconds
  • Power-up: Red, yellow, green, flash sequence; Sounder - One chirp at the end of the power-up sequence
  • Tamper: Red, yellow, green flash sequence every 12 seconds; Sounder - off
  • Hush Mode: LEDs - Red flash every 1 second (alarm hush), Yellow flash every 12 seconds (low battery hush)

Product Compatibility:

  • DSC Iotega Control Panels
  • DSC PowerSeries Neo Control Panels
  • DSC PowerSeries Pro Control Panels
  • Qolsys IQ Panel 2 Plus Control Panels
  • Qolsys IQ Panel 4 Control Panels
