DSC PowerG Wireless Shock Sensor

by DSC
SKU PG9935
Original price $77.99 - Original price $77.99
Original price
$77.99
$77.99 - $77.99
Current price $77.99

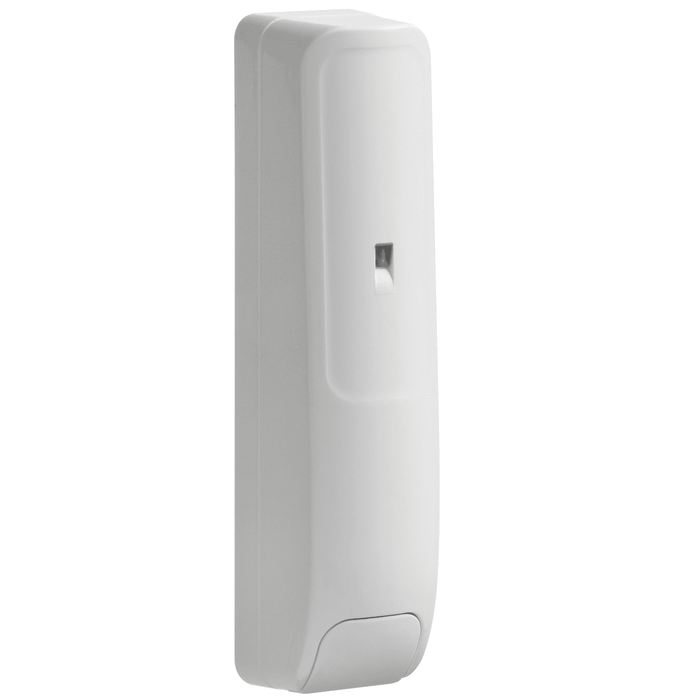

The DSC PG9935 is a wireless PowerG shock sensor with aux input.  The PG9935 protects windows, doors, walls, or roofs, and is great for private or business establishments.


The PG9935 sensor incorporates a one-of-a-kind, 7-segment display that permits the installer to set the shock level and shows the real shock level while testing.



Product Features:

  • Ideal for a wide range of residential and commercial applications
  • Ensures reliable performance using built-in PowerG leading-edge wireless intrusion technology with two-way communication
  • Early detection of gross attacks or low-level shocks
  • Can be installed quickly in locations where cabling would be difficult and unsightly
  • High immunity to background vibrations which can cause a false alarm
  • Protects windows, doors, walls, and roofs against forced entry
  • Quick and easy installation using a unique 7-segment shock meter and push buttons
  • Optional auxiliary input to connect wired detectors, pushbuttons or other detection devices, can be enrolled as a separate zone
  • Prolonged battery life of up to 5 years (for typical use) with all sensors enabled
  • Low battery indication
  • Backed by DSC's 1-year limited manufacturer's warranty.

Product Specifications:

  • Dimensions (L x W x H): 4-5/8" x 1-1/8" x 1-3/16" in (118mm x 27mm x 30mm)
  • Weight (including battery): 130g (4.6 oz)
  • Communication Protocol: PowerG
  • Alarm Input: On auxiliary
  • Supervision: Signaling at 4-min. intervals
  • Tamper Alert: Reported when a tamper event occurs
  • Battery Life: 5 years (for typical use) with all sensors enabled
  • Battery Type: 3V Lithium CR-123A Battery (Panasonic or GP)
  • Door frame height: typical 7ft to 8ft (213 to 244 cm) 1/2
  • Door frame width: typical 1ft to 4ft (30.5 to 122 cm) 1/2
  • Door frame thickness: 1-1/2" to 1-3/4" in (3.8 to 4.4 cm)
  • Window/glass insert size: any size that will fit within the door frame listed above. Install the contact so that a door or window cannot be opened more than 2" (5.1 cm) without causing an alarm condition.
  • Frequency Band (MHz): CE Listed PG4935: 433MHz; CE listed PG8935: 868MHz; FCC/IC/UL/ULC listed PG9935: 912-919MHz
  • Operating Temperature: 14°F to 131°F (-10°C to 55°C)
  • Relative Humidity: 93% max. non condensing
  • Auxiliary Input Cable Length: 10m max. AWG22
  • Auxiliary Input EOL Resistor: 2.2KΩ
  • Auxiliary Input EOL Resistor: 2.2KΩ
  • Compatible Receivers: 433 MHz Band: HSM2HOST4; HS2LCDRF(P)4; HS2IC-NRF(P)4; PG4920
    868MHz Band: HSM2HOST8; HS2LCDRF(P)8; HS2IC-NRF(P)8; PG8920
    912-919MHz Band: HSM2HOST9; HS2LCDRF(P)9; HS2IC-NRF(P)9; PG9920
  • Approvals: UL 634 and ULC/ORDC634, FCC Part 15

Product Compatibility:

  • DSC Iotega Control Panels
  • DSC PowerSeries Neo Control Panels
  • DSC PowerSeries Pro Control Panels
  • Qolsys IQ Panel 2 Plus Control Panels
  • Qolsys IQ Panel 4 Control Panels
